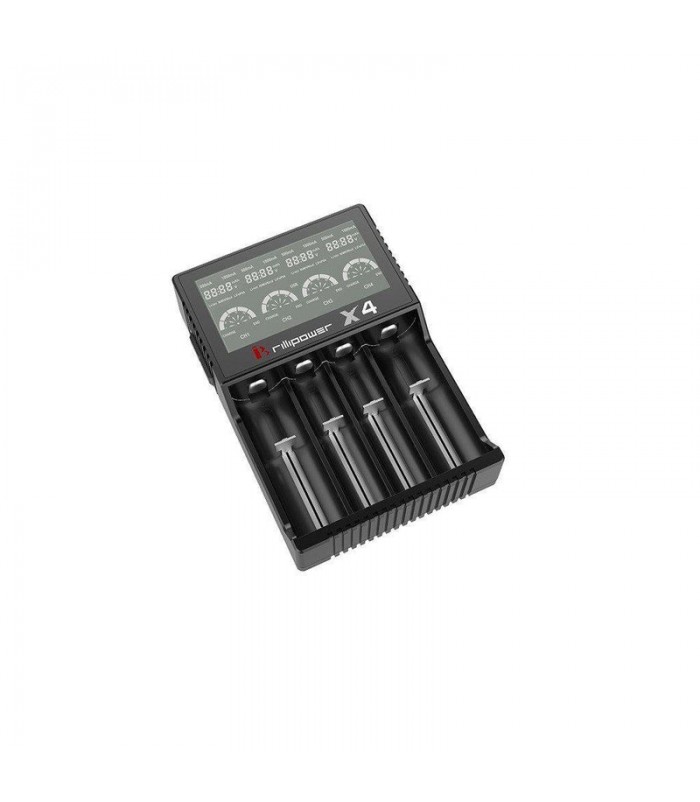

Brillipower X4 LCD Charger (4 Bay)

Features: Microcomputer control technology, intelligent implementation, two separate grooves, supports mixed charging modeInstant visual display LCD shows charging, the types of batteries, battery voltage current progress, and the current filling cap..

  • Ex Tax: $13.99
  • Product Code: M00000072
  • Availability: In Stock
$13.99

Features:

  • Microcomputer control technology, intelligent implementation, two separate grooves, supports mixed charging mode
  • Instant visual display LCD shows charging, the types of batteries, battery voltage current progress, and the current filling capacity
  • Compatible with any capacity of ni-mh/ni-cd/lithium iron phosphate lithium battery / 3.8 V / 3.7 V lithium battery at any combination
  • Can fit below 26 mm diameter, height 34-72 - mm rechargeable batteries
  • Compatible with 3.7 V lithium-ion batteries (3.6 V) and 1.2 V ni-mh/ni-cd batteries
  • Has a constant current, constant voltage charging mode
  • Uses DV control technology making charging efficiency higher
  • 100-240 - v wide voltage input;
  • Battery reverse connect protection, short circuit protection
  • Overcharge protection
  •  Automatic activation function:
    • Automatically activated zero voltage lithium battery (with instantaneous short circuit protection board of good battery)
    • More than 0.5 V battery automatically activated

Specifications:
 INPUT:

  • AC  100-240V 50/60 Hz or DC 5V 1A
 OUTPUT:
  • DC 4.35 V ±  0.02 V, 500 mA ± 30 mA*4 or 1000mA ± 50mA*2
  • DC 4.2 V ±  0.02 V,   500 mA ± 30 mA*4 or 1000mA ± 50mA*2
  • DC 3.6 V ±  0.02 V,   500 mA ± 30 mA*4 or 1000mA ± 50mA*2
  • DC 1.43 V ±  0.02 V, 500 mA ± 30 mA*4 or 1000mA ± 50mA*2
The first groove and the fourth slot charging current, there are two options of 1000 ma/500 mA, the charger into the battery (includes two) under two 1000 ma recharged, otherwise charges 500mA.
